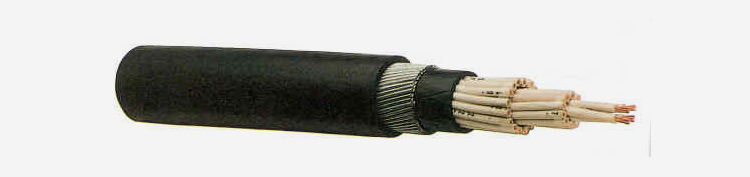

4 Sqmm Cables Cu/PVC/PVC/SWA/PVC
600/1000 V - AUXILIARY CABLES (CONTROL CABLES)
Copper Conductor
PVC Insulated steel wire Armoured
PVC Sheathed Cables
(Cu/PVC/PVC/SWA/PVC): Size : 4 SQMM
| Number of Cores |
Maximum Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Extruded Bedding |
Dia. of Armour Wire |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum size |
Approx. Gross Weight |
| No. |
Ohm/Km |
mm |
mm |
mm |
mm |
mm |
kg/km |
Metre ± 10% |
|
Kg |
| 2** |
4.61 |
0.8 |
0.8 |
0.9 |
1.4 |
15.4 |
460 |
1000 |
D-11 |
560 |
| 3** |
4.61 |
0.8 |
0.8 |
0.9 |
1.4 |
16.1 |
515 |
1000 |
D-11 |
615 |
| 4** |
4.61 |
0.8 |
0.8 |
1.25 |
1.5 |
18.1 |
700 |
1000 |
D-12 |
810 |
| |
| 5** |
4.61 |
0.8 |
0.8 |
1.25 |
1.5 |
19.3 |
790 |
500 |
D-10 |
455 |
| 7 |
4.61 |
0.8 |
0.8 |
1.25 |
1.6 |
20.8 |
935 |
500 |
D-10 |
530 |
| 8** |
4.61 |
0.8 |
0.8 |
1.25 |
1.6 |
22.1 |
1060 |
500 |
D-11 |
630 |
| |
| 12 |
4.61 |
0.8 |
1.0 |
1.6 |
1.7 |
27.1 |
1550 |
500 |
D-12 |
885 |
| 19 |
4.61 |
0.8 |
1.0 |
1.6 |
1.8 |
30.9 |
2060 |
500 |
D-14 |
1180 |
| 27 |
4.61 |
0.8 |
1.2 |
2.0 |
2.0 |
37.5 |
2990 |
500 |
D-18 |
1740 |
| |
| 37 |
4.61 |
0.8 |
1.2 |
2.0 |
2.1 |
41.3 |
3670 |
500 |
D-18 |
2080 |
| 48 |
4.61 |
0.8 |
1.2 |
2.0 |
2.2 |
46.5 |
4490 |
500 |
D-19 |
2570 |
All the Cables are insulated with either PVC Type 5 Heat Resisting 85°C Compound and sheathed with PVC
Type 9/ST2 compound OR PVC type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
All conductors circular stranded .
** Cables generally conform to BS 6346.
All other cables conform to BS 6346.
Core identification by number printing on white cores.
