Data Transmission Cables - 4 pair 24 AWG
Data Transmission Cables

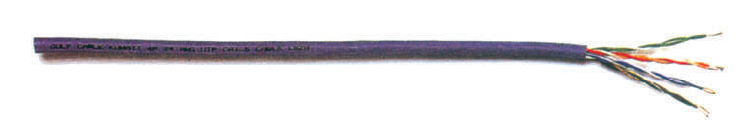

24 AWG - 4 Pair Unshielded Twisted Pair (UTP-CAT5) (Enhanced)
| Type Of Cable |
*UTP |
| Conductor Size |
Solid Plain Copper
24 AWG
|
| Type of Insulation |
Polypropylene |
| Thickness of Insulation(mm) |
0.21 |
| Type of Shield |
N.A. |
| Type of Jacket |
PVC- Grey(Type 9) |
| Thickness of Jacket(mm) |
0.6 |
| Overall Diameter(mm) |
5.3 |
|
Conductor Resistance
Max. Ohm/Km at 20oC
|
93.8 |
| Mutual Capacitance Max. |
5.6 nF/100M |
| Capacitance Unbalance Max. |
330 pF / 100M |
|
Characteristic Impedance
Ohms
|
100 ± 15 |
| Attenuation Max. at 100MHz |
22dB / 100M |
| Cross Talk Min. at 100MHz |
32dB / 100M |
| Core Identification |
White / Blue, Blue
White / Orange, Orange
White / Green, Green
White / Brown, Brown
|
*Tested at ETL laboratory for frequency upto 350Mhz, which exceeds the requirementsof TIA/EIA - 568 A
Above cables with FIRE RETARDENT or LOW SMOKE ZERO HALOGEN jacket available on request.
