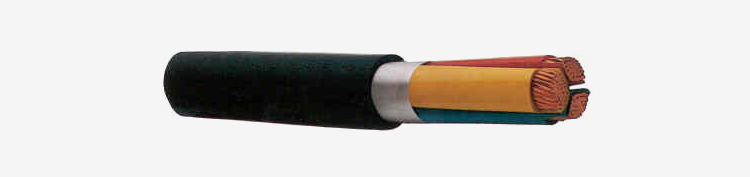

Three Core Cables Cu/XLPE/PVC
600/1000 V - THREE CORE
Copper Conductor XLPE Insulated
PVC Sheathed Cables
(Cu/XLPE/PVC)
| Nominal Area of Conductor |
Maximum Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum Size |
Approx. Gross Weight |
| Sqmm |
Ohm/Km |
mm |
mm |
mm |
Kg/Km |
Metre ±10% |
|
Kg |
| 1.5* |
12.1 |
0.7 |
1.8 |
11.3 |
170 |
1000 |
D-9 |
230 |
| 1.5 |
12.1 |
0.7 |
1.8 |
11.7 |
175 |
1000 |
D-9 |
235 |
| 2.5* |
7.41 |
0.7 |
1.8 |
12.2 |
210 |
1000 |
D-9 |
270 |
| 2.5 |
7.41 |
0.7 |
1.8 |
12.6 |
220 |
1000 |
D-9 |
280 |
| |
| 4 |
4.61 |
0.7 |
1.8 |
13.7 |
280 |
1000 |
D-10 |
340 |
| 6 |
3.08 |
0.7 |
1.8 |
15.0 |
360 |
1000 |
D-10 |
420 |
| 10 |
1.83 |
0.7 |
1.8 |
17.1 |
500 |
1000 |
D-11 |
600 |
| |
| 16 |
1.15 |
0.7 |
1.8 |
19.3 |
705 |
1000 |
D-12 |
815 |
| 25 |
0.727 |
0.9 |
1.8 |
19.9 |
955 |
500 |
D-10 |
540 |
| 35 |
0.524 |
0.9 |
1.8 |
22.3 |
1250 |
500 |
D-11 |
725 |
| |
| 50 |
0.387 |
1.0 |
1.8 |
25.5 |
1610 |
500 |
D-12 |
915 |
| 70 |
0.268 |
1.1 |
1.9 |
28.2 |
2230 |
500 |
D-12 |
1230 |
| 95 |
0.193 |
1.1 |
2.0 |
32.2 |
3000 |
500 |
D-16 |
1710 |
| |
| 120 |
0.153 |
1.2 |
2.1 |
35.8 |
3750 |
500 |
D-18 |
2120 |
| 150 |
0.124 |
1.4 |
2.3 |
39.2 |
4660 |
500 |
D-18 |
2570 |
| 185 |
0.0991 |
1.6 |
2.4 |
43.6 |
5730 |
250 |
D-14 |
1580 |
| |
| 240 |
0.0754 |
1.7 |
2.6 |
49.6 |
7360 |
250 |
D-16 |
2050 |
| 300 |
0.0601 |
1.8 |
2.8 |
54.4 |
9210 |
250 |
D-18 |
2550 |
| 400 |
0.0470 |
2.0 |
3.1 |
62.0 |
11890 |
250 |
D-18 |
3210 |
| |
| 500 |
0.0366 |
2.2 |
3.3 |
67.2 |
14800 |
250 |
D-19 |
4020 |
* Circular solid conductors (Class1).
Conductors including 16 Sqmm circular stranded (Class2).
25 Sqmm and above shaped stranded conductors (Class2).
All cables conform to IEC 60502-1.
