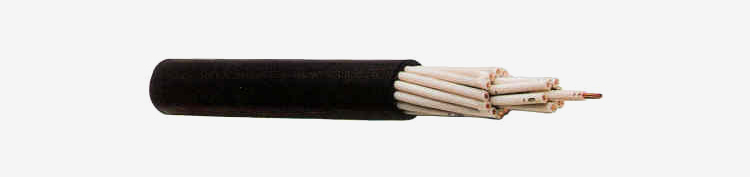

4 Sqmm Cables Cu/PVC/PVC
600/1000 V - AUXILIARY CABLES (CONTROL CABLES )
Copper Conductor PVC Insulated
PVC Sheathed Cables
(Cu/PVC/PVC) : SIZE : 4 SQMM
| Number of Cores |
Maximum Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum size |
Approx. Gross Weight |
| No. |
Ohm/Km |
mm |
mm |
mm |
Kg/Km |
Metre ± 10% |
|
Kg |
| 2 |
4.61 |
1.0 |
1.8 |
14.0 |
280 |
1000 |
D-10 |
340 |
| 3 |
4.61 |
1.0 |
1.8 |
14.8 |
330 |
1000 |
D-10 |
390 |
| 4 |
4.61 |
1.0 |
1.8 |
16.0 |
390 |
1000 |
D-11 |
490 |
| |
| 5 |
4.61 |
1.0 |
1.8 |
17.3 |
470 |
500 |
D-9 |
295 |
| 7 |
4.61 |
1.0 |
1.8 |
19.0 |
590 |
500 |
D-9 |
355 |
| 8 |
4.61 |
1.0 |
1.8 |
20.4 |
670 |
500 |
D-10 |
395 |
| |
| 12 |
4.61 |
1.0 |
1.8 |
24.5 |
930 |
500 |
D-11 |
565 |
| 19 |
4.61 |
1.0 |
1.8 |
28.4 |
1340 |
500 |
D-12 |
780 |
| 27 |
4.61 |
1.0 |
2.0 |
34.3 |
1870 |
500 |
D-16 |
1145 |
| |
| 37 |
4.61 |
1.0 |
2.1 |
38.4 |
2450 |
500 |
D-18 |
1465 |
| 48 |
4.61 |
1.0 |
2.3 |
44.3 |
3155 |
500 |
D-18 |
1815 |
All the Cables are insulated with either PVC Type 5 Heat Resisting 85°C Compound and sheathed with PVC
Type 9/ST2 compound OR PVC type A/TI1 compound and sheathed with PVC Type ST1/TM1 compound.
All conductors circular stranded.
Cables conform to IEC 60502 - 1.
Core identification by number printing on white cores.
