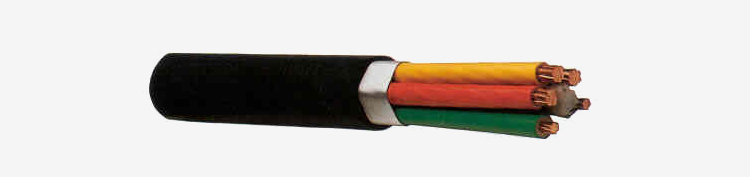

Multicore Cables For Street Lighting Cu/XLPE/PVC
600/1000 V - MULTICORE CABLE
FOR STREET LIGHTING
Copper Conductor XLPE Insulated
PVC Sheathed cables
(Cu/XLPE/PVC)
| Cable Details |
Nominal Area of Conductor |
Max. Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum Size |
Approx. Gross Weight |
| Phase |
Neutral & Earth |
Phase |
Neutral & Earth |
Phase |
Neutral & Earth |
| |
Sqmm |
Ohm/Km |
mm |
mm |
mm |
Kg/Km |
Metre ± 10% |
|
Kg |
| 2x16+1x10 |
16 |
10 |
1.15 |
1.83 |
0.7 |
0.7 |
1.8 |
18.9 |
660 |
1000 |
D-12 |
770 |
| 3x25+2x16 |
25 |
16 |
0.727 |
1.15 |
0.9 |
0.7 |
1.8 |
27.2 |
1510 |
1000 |
D-16 |
1720 |
| 3x35+2x16 |
35 |
16 |
0.524 |
1.15 |
0.9 |
0.7 |
1.8 |
30.2 |
1850 |
500 |
D-14 |
1080 |
| Cable Details |
Nominal Area of Conductor |
Max. Conductor Resistance at 20°C |
Thickness of Insulation |
Thickness of Outer Sheath |
Approx. Overall Diameter |
Approx. Cable Weight |
Standard Packing Length |
Drum Size |
Approx. Gross Weight |
| |
Sqmm |
Ohm/Km |
mm |
mm |
mm |
Kg/Km |
Metre±10% |
|
KG |
| 5x1.5* |
1.5 |
12.1 |
0.7 |
1.8 |
13.0 |
225 |
1000 |
D-10 |
285 |
| 5x1.5 |
1.5 |
12.1 |
0.7 |
1.8 |
13.5 |
235 |
1000 |
D-10 |
295 |
| 5x2.5* |
2.5 |
7.41 |
0.7 |
1.8 |
14.1 |
280 |
1000 |
D-10 |
340 |
| 5x2.5 |
2.5 |
7.41 |
0.7 |
1.8 |
14.6 |
295 |
1000 |
D-10 |
355 |
| |
| 5x4 |
4 |
4.61 |
0.7 |
1.8 |
15.9 |
390 |
1000 |
D-11 |
490 |
| 5x6 |
6 |
3.08 |
0.7 |
1.8 |
17.6 |
505 |
1000 |
D-12 |
615 |
| 5x10 |
10 |
1.83 |
0.7 |
1.8 |
19.5 |
740 |
1000 |
D-12 |
850 |
| |
| 5x16 |
16 |
1.15 |
0.7 |
1.8 |
22.4 |
1060 |
500 |
D-11 |
630 |
| 5x25 |
25 |
0.727 |
0.9 |
1.8 |
27.2 |
1650 |
500 |
D-12 |
925 |
| 5x35 |
35 |
0.524 |
0.9 |
1.8 |
30.2 |
2170 |
500 |
D-14 |
1235 |
* Circular solid conductors (Class 1).
All other conductors circular stranded (Class 2).
Cables conform to IEC 60502-1.
