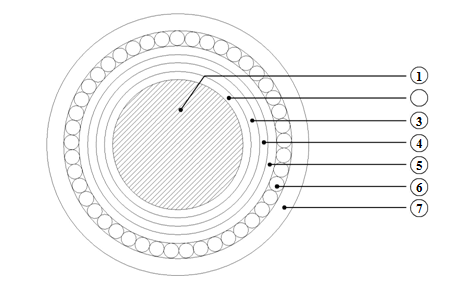

SINGLE CORE LEAD SHEATHED LV CABLES


"Not to scale"

1. Conductor : Stranded Circular ( Copper / Aluminium )
2. Insulation ; XLPE ( Crosslinked Polyethylene ) PVC
3. Inner Sheath ; Extruded PVC
4. Metallic Sheath ; Lead / Lead Alloy
5. Seperation Sheath : Extruded PVC
6. Armour : Aluminium Wire
7. Outer Sheath : PVC
