L.T. Cable joints/Cable Jointings/Street Lighting Joints


Street Lighting Joints







Cable Specifications:

  1. Conductors:
    Copper & Aluminium Conductors

  2. Insulation & Sheathing:
    PVC Insulated, XLPE Insulated, Paper Insulated,
    PVC Sheathed Armoured or Unarmoured cables.

  3. Voltage range:
    Upto 1000 V a.c & 1500 V d.c.

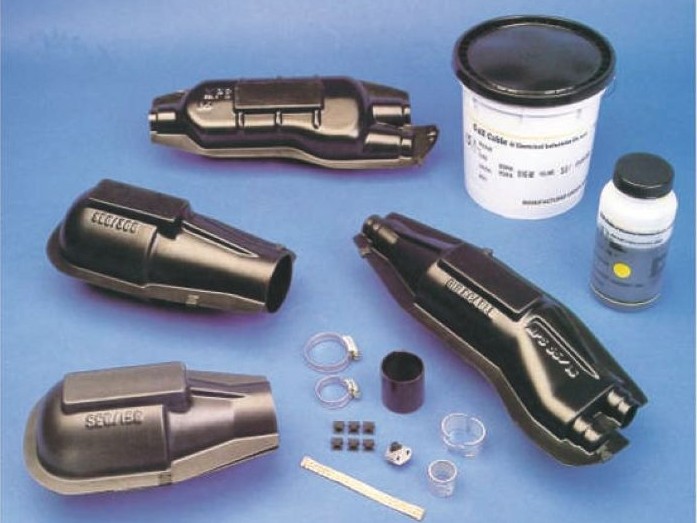

Cable Joint Kit Contents:

The kit contents encloses the following items:

  1. Adequate number of Mechanical Connectors.
  2. Cable Joint Outer Shell(Top + Bottom + Cap)
  3. Armour Bonding System in case of Armoured Cables(Earth Continuity).
  4. Adequate number of Brass Gauzes incase of Copper Conductors.
  5. Water Sealent Strip in case of PILC Cables.

S.No Cores Size(Sqmm) No. of Cores
 1  Universal Joint 5 x 35 1-5
 2  Universal Joint 3 x 16 1-3

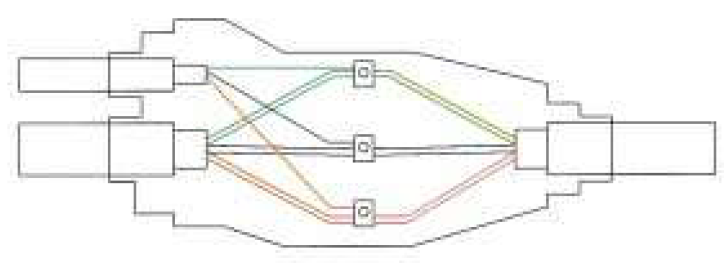

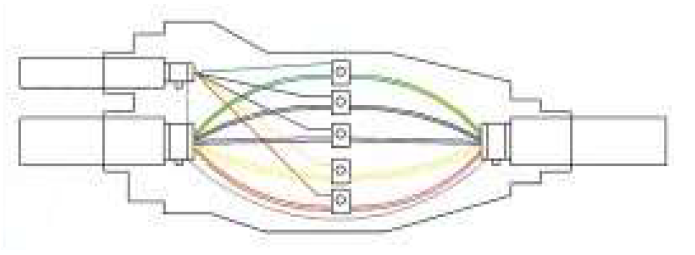

*Can be used either as Branch Joint & Straight
Other sizes can be prepared as per the requirements of the customers
