Straight Through Joints

Cable Specification:

  1. Conductors:
    Copper & Aluminium Conductors
  2. Insulation Sheathing:
    PVC Insulated,XLPE Insulated, Paper Insulated, PVC Sheathed Armoured or
  3. Unarmoured cables.
  4. Voltage range:
    Upto 1000 V a.c & 1500 V d.c.

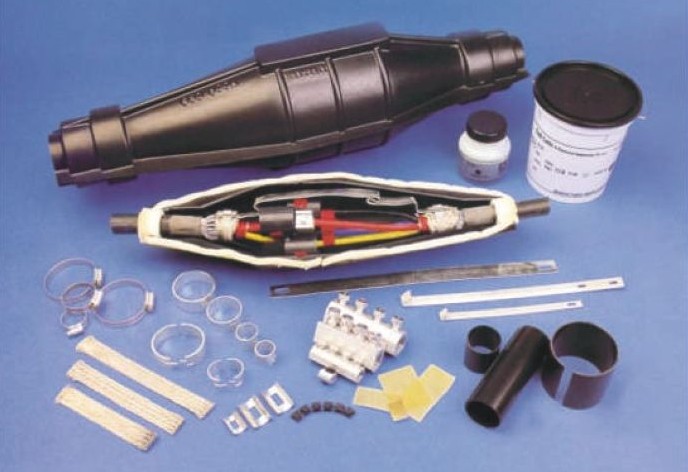

Cable Joint Kit Contents:

The kit contents encloses the following items:

  1. Adequate number of Mechanical Connectors
  2. Cable Joint Outer Shell(Top + Bottom + Cap)
  3. Armour Bonding System in case of Armoured Cables (Earth Continuity).
  4. Adequate number of Brass Gauzes incase of Copper Conductors
  5. Water Sealent Strip in case of PILC Cables

S.No Cores Size(Sqmm) No. of Cores
 1  Straight Th. Joint 500/500 1-4
 2  Straight Th. Joint 500/300 1-4
3 Straight Th. Joint 300/300 1-4
  4   Straight Th. Joint 300/185  1-4
 5 Straight Th. Joint 300/150 1-4
 6  Straight Th. Joint 240/240  1-4
 7 Straight Th. Joint 150/150 1-4
 8 Straight Th. Joint 150/70   1-4
 9 Straight Th. Joint 120/120 1-4
 10 Straight Th. Joint 120/70   1-4
 11 Straight Th. Joint 95/95     1-4
 12 Straight Th. Joint 70/70     1-4
 13 Straight Th. Joint 50/50     1-4
 14 Straight Th. Joint 50/35     1-4
 15 Straight Th. Joint 25/25     1-4
 16 Straight Th. Joint 16/16     1-4

*Other sizes can be prepared as per the requirements of the customers
