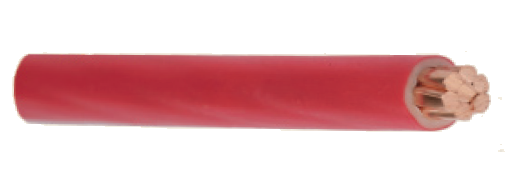

Single Core Switchgear and Control Gear Cables Cu/PVC

600 / 1000V - Single Core
Copper conductor PVC Insulated
Cables for switch gear and
control gear wiring type CU
and CR as per BS 6231 - 1990
(CU / PVC)


Type Nominal Area of Conductor Maximum Conductor Resistance at 20°C Thickness of Insulation  Mean Overall Diameter (Max) Approx. Cable Weight Standard Packing Length Drum Size/Coil Approx. Gross weight
  Sqmm Ohm/KM mm mm Kg/Km Yard/Meter   KG
CU  1.0 18.1 0.8 3.2 18 100Y Coil 1.8
 1.5 12.1 0.8 3.5 23 100Y Coil 2.3
 2.5 7.41 0.8 3.9 32 100Y Coil 3.2

CR   2.5  7.41 0.8 4.2 34 100Y Coil 3.4
 4 4.61 0.8 4.8 49 100Y Coil 4.9
  6  3.08 0.8 5.4 68 100Y Coil 6.8

  10 1.83 1.0 6.8 115 100Y Coil 12
 16  1.15 1.0 8.0 170 100Y Coil 17
25 0.727 1.2 9.8 265 100Y Coil 27

   35 0.527 1.2 11.0   360  Metre± 10% 1000M  D-8  410
 50  0.387 1.4  13.0    490    1000M   D-9  550
 70  0.268 1.4  15.0   685  1000M  D-9  745

  95  0.193  1.6  17.0  950   500M   D-8   525
 120 0.153  1.6  19.0  1180   500M    D-9   650
150 0.124 1.8  21.0   1480  500M   D-10  800

  185 0.0991   2.0  23.5  1810 500M     D-10  965
 240 0.0754    2.2  26.5 2360 500M    D-11 1280

Type CU: Rigid, round, solid conductors (Class 1).
Type CR: Rigid, round, stranded conductors (Class 2).


All the cables are insulated with PVC type 5 heat resisting 85°C compound.
Cables conform to BS 6231-1990
