Pilot Cables - 16 And 34 Core Cables

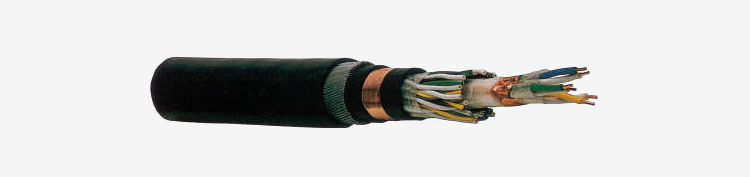

PILOT CABLE
COPPER CONDUCTOR PE INSULATED
STEEL WIRE ARMOURED PVC SHEATHED CABLES

Total Number of Cores	To Withstand Max. Induced Voltage Level	Conductor							Thickness of Insulation (Min.)	Thickness of Screening Tape (Approx)	Thickness of PE Bedding (Min)	Thickness of PE Inner Sheath (Min)	Diameter of Armour Wire (Nom)	Thickness of Outer Sheath (Min.)	Approx. Overall Diameter	Approx. Cable Weight	Standard Packing Length	Drum Size	Approx. Gross Weight
		Nominal Area of Conductor	Number of Cores	Maximum DC Resistance at 20°C	Screened Pair		Unscreened Pair
		Nominal Area of Conductor	Number of Cores	Maximum DC Resistance at 20°C	Number of Pairs	Nominal Diameter of Wires	Number of Pairs	Nominal Diameter of Wires
No.	KV	Sqmm	No.	Ohm/Km	No.	mm	No.	mm	mm	mm	mm	mm	mm	mm	mm	Kg/Km	Metre ±5%		Kg
16	5	2.5 & 0.635	6 10	7.41 28.48	1 2	1.78 0.90	2 3	1.78 0.90	0.5	0.09	-	1.0	1.25	1.7	24.0	970	1000	D-14	1120
34	15	2.5 & 0.635	6 28	7.41 28.48	3 -	1.78 -	- 14	- 0.90	0.8	0.075	1.8	0.5	2.0	1.9	44.0	2900	750	D-21	2595

All Conductors circular solid (Class 1).
In 16 Core Pilot Cable polyester laminated Aluminium screen is provided over pairs for Solkor protection and Telephone System.
In 34 core Pilot Cable individual pairs for Solkor Protection system and intertripping and interlocking system are screened with plain copper tape. Also an overall screen of plain copper tape is provided over PE bedding.
Cables conform to MEW Kuwait and ESI 09-6 Specification.
